PRODUCT NAME(產品名稱)：

F311 EOE

F311方形蓋

Pop（啟破力）: ≤20 N

Full Open Tear（全開力）: ≤45 N

End Alloy/Temper(蓋材合金/硬度)：3104H48

Extermal Coating(外涂料)：PC-12-35668-C

Intermal Coating(外涂料)：PC-12-35247

DIMENSIONS IN MILLIMETERS UNLESS OTHERWISE STATE

尺寸（毫米），除另有說明

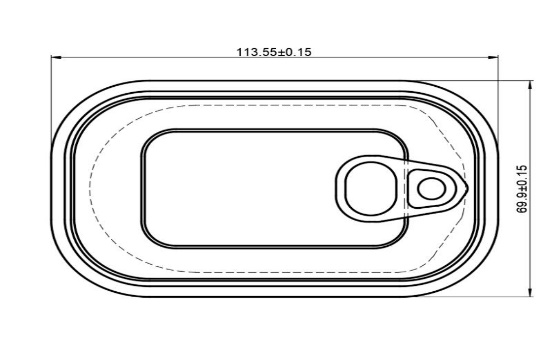

A.Length（長度）:            113.55 +/-0.15

B.Width（寬度）:              69.90 +/-0.15

C.Thickness(厚度):                 0.25

D.Curl Opening（鉤邊開度）:        ≥3.70

E.Countersink Depth（埋頭度）:     3.12 +/- 0.15

COMPOUND TYPE（封口膠類型）;            WATERBASE

COMPOUND PLACEMENT（封口膠放置）         Standard(標準)

M.Distance from Cut Edge（余留寬度）:    0.1-1.0mm

P.Placement Width（膠寬度）:             -

Seaming Compound Weight（封口膠重量）:   85-115mg

Remark(備注):

It is suitable for  packaging fish food .（適用于包裝魚類食品）

Inside coating(內涂):      Aluminized lacquer(渡鋁涂料 )
